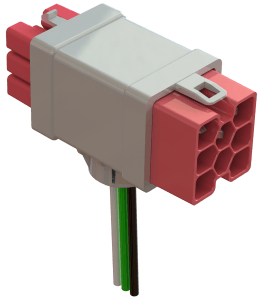

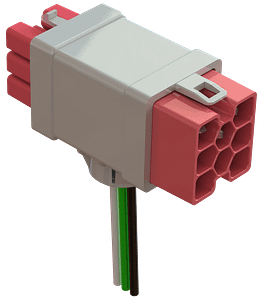

Fixture Tap

Provides interconnection of light fixtures as well as floor boxes.

Compact low-profile device for quick connection of luminaires. Snap-in ½” Trade size knockout design can be field or factory installed.

Features and Benefits:

  • ELECTEC EZ-Wiring® components are UL Listed to be in compliance with UL 183 – Manufactured Wiring Systems (QQVX) and CSA Certified to be in compliance with CSA 22.2 No. 203-1 – Manufactured Wiring Systems.
  • Constructed using ULTRALX® MC/AC90* cable (300lbs Tension), minimum 12AWG stranded conductors rated 600V 20A.
  • Robust terminal design exceeds 470Amp for 4 seconds.
  • EZ-Wiring Connectors are integrally moulded (fully encapsulated) utilizing high impact Halogen-free, Eco-Friendly, Low Smoke,
    UL94-V0 rated, Oxygen Index – 33 %, RoHS-compliant polymersfor superior strength, reliability and safety. Dielectric Withstand 3000Vac.
  • Mating connectors are self-latching and shrouded for added protection.
  • Uniquely-keyed and colour-coded to clearly indicate ratings and provide safe, simple, error-free connectivity. Only connectors having identical colours can plug together properly.
  • Approved “Ballast Disconnect Means” per NEC 410.73(g) and CEC Part 1 30-308(4).
  • Suitable for use in environmental air handling spaces (plenums) per NEC 300-22(c) and CEC Part 1 12-010(3)
  • Acceptable for interrupting current (make or break) under full load.
